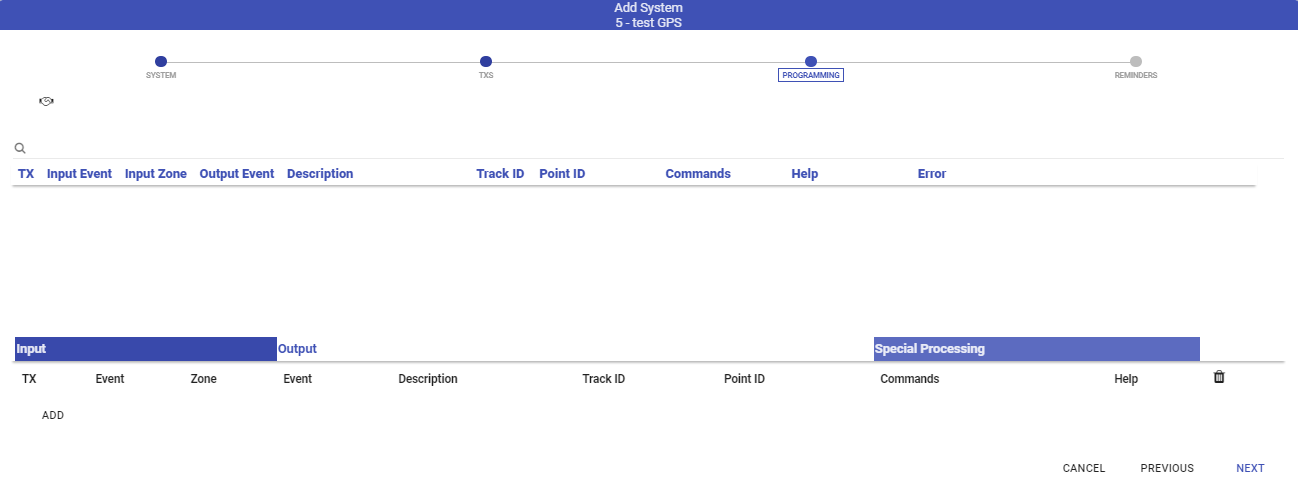

Like Event Monitoring Programming, the only time you need to add programming here is if there is no other way to override the incoming event for this specific account.
- Transmitter = The Transmitter added for GPS tracking.
- Input Event = The incoming signal from the GPS Unit.
- Input Zone = Incoming Zone with the signal from the GPS Unit.
- Output Event = The event to present to history and, if required, operator.
- Track ID = The zone/ID override. When set to equal (🟰) the Input Zone carries to the output.
- Point ID = If needed override the output event description.
- Commands = Feature to empower or track the event. The most commonly used items are CanCancel, RestRq, and GPS.
- Help = Information that an operator must read EVERY time this event trips.
Once the Programming is entered as required, click Next.
